Home ANLY TWIN TIMER ANLY - Anly Timer De Forest ATDE-N 240VAC (12H-30M)

Manual "Defrost" button in front*

PRODUCT SPECIFICATIONS:

CLASSIFICATION		TWIN TIMER
MODEL		ATDV-N	ATDV-Y
DIMENSIONS		61H49W70D	88H58W68D
MOUNTING&SOCKER	SURFACE(-N)	PF083A	PF083A
	FLUSH(-Y)	-	US-08 P3G-08
FULL TIMING RANGE		636S,6S60S¡¡¡¡¡¡ 60S6S,60S60S¡¡ 6m6m,6m60m¡¡ 60m6m,60m60m Longest time 12Hours upon clients' rdquest
RATED VOLTAGE		DC(V):12,24 AC(V):12,24,110,220,240,380,415,440,50/60HZ
INDICATOR OPERATING		ON,OFF Operating
O/P CONTACT	MODEL	ATDV-N	ATDV-Y
	TIME LIMIT?1C	5A	5A
	TIME LIMIT?2C	-	-
	INSTANTENOUS 1C	-	-
LIFE	MECHANICAL	5*10 6 times
	ELECTRIC	10 5 times
ACCURACY	TO-and-FRO ERROR	±1% max	±2% max
	CONFIGURE ERROR	±10% max
	VOLTAGE ERROR	±1% max
	TEMPERATURE ERROR	±2% max
RESET TIME		0.2 sec max
CONSUMED POWER		2VA
AMBIENT TEMPERATURE		-10ºC~+55ºC
AMBENT HUMINITY		48~85%RH
WEIGHT		160g	210g

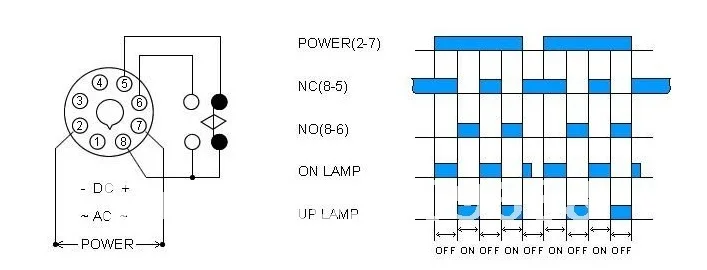

CONNECTION DIAGRAMS&TIMING CHART ATDV-N

CONNECTION DIAGRAMS&TIMING CHART ATDV-Y
