Available Items.

• LUSS 22  _ 2/0  _ 1-0-2
• LUSS 22  _ 1 0/C _ 1 2
• AUSS  22  _ 1 0/C  _ 1 2
• AUSS  22 _ 2/0 _ 1-0-2

SWITCHES - TAIWAN

Quick Details

Place of Origin:

Taiwan, China

Brand Name:AP, Auspicious

Protection Level: IP65

Max. Current: 6A

Max. Voltage: 120V

Light Source: LED, Filament or Neon

Voltage: 110V, 220VAC, 12V, 24VDC

Color:  Black

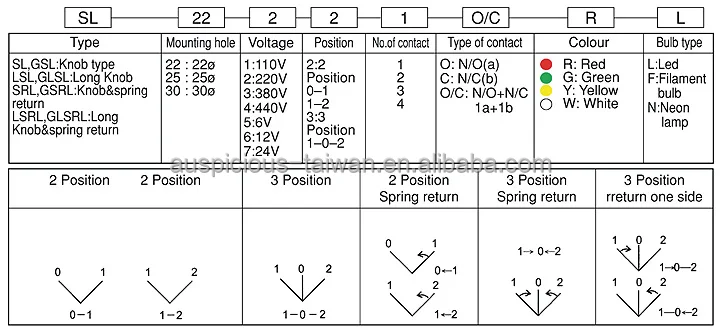

22mm Waterproof Illuminated Selector Switch
1. CSA, UL, TUV approved

2. 1/C, 1/O, or 1O/C available

3. Red, Green, Yellow, Blue, White

4. 2 Position Spring Return :

    1/O : 0 ← 1

    1/C : 1 ← 0

    1O/C : 1 ← 2

5. Lamp Voltage: 12V, 24V, 110V, 220V, 380V, 440V

6. LED, Filament or Neon Lamp
