Available Items.
Product Details.
Material: UL approved Nylon 66, 94V-2
Color: Black, available in other colors.
Feature : Simply and quickly fixed, high degree of the protection IP68 preventing dust and water.
EG-7LS has smaller nut.
Protection : IP68 ( only if the washer is assembled

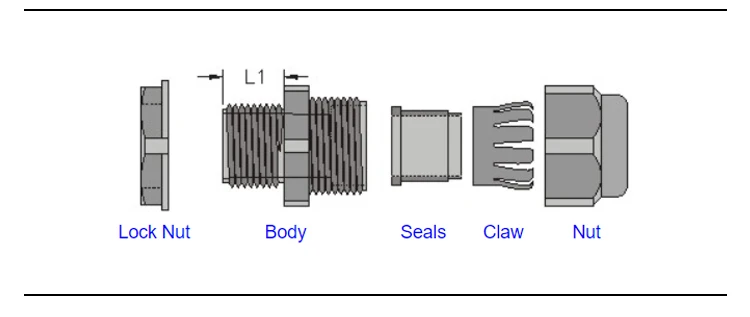

Item No. | Thread | Mounting Hole | L1 | Cable Range | Packing |
CEG-7 | PG7 | 12.5~12.8 | 8 | 3 ~ 6.5 | 50 pcs / Bag |
CEG-9 | PG9 | 15.2~15.5 | 8.2 | 4 ~ 8 | |
CEG-11 | PG11 | 18.3~18.9 | 8.2 | 5 ~ 10 | |
CEG-13.5 | PG13.5 | 20.4~20.7 | 9 | 6 ~ 12 | |
CEG-16 | PG16 | 22.5~22.8 | 9.9 | 10 ~ 14 | |
CEG-21 | PG21 | 28.3~28.7 | 10.8 | 13 ~ 18 | |
CEG-29 | PG29 | 37.0~37.4 | 10.8 | 18 ~ 25 | 25 pcs / Bag |
CEG-36 | PG36 | 47.0~47.4 | 14.7 | 22 ~ 32 | 10 pcs / Bag |
CEG-42 | PG42 | 54.0~54.4 | 14.7 | 30 ~ 38 | |
CEG-48 | PG48 | 59.3~59.7 | 16.7 | 34 ~ 44 |
