Available counter ranges.

• NA  (1S-10M)
• NB  (3S-30M)
• NC  (6S-60M)
• ND  (1S-10H)
• NE  (3M-30H)

Product details.

• Customized CMOS  IC for low power consumption, high operation stability and extreme timing accuracy
• Independent adjustment for continuous ON-OFF operation and time
• 16 different time ranges available
• 2 operating voltage in a single unit,  AC110V and 220V
• 5(A, B, C, D, E) timing series available*
• Each timing series has 4 time ranges, selectable via DIP switch*
• CE certified

        Note: "*" indicates applicable to ATDV multi range  series only

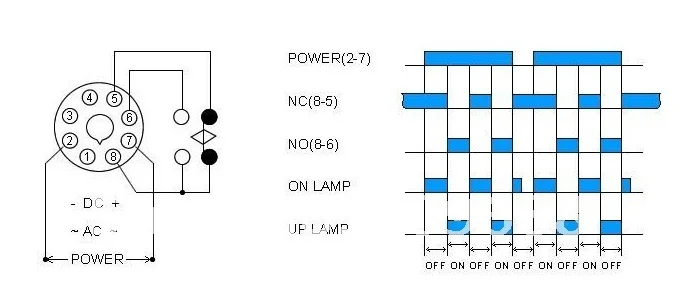

CONNECTION DIAGRAMS&TIMING CHART      ATDV-N

CONNECTION DIAGRAMS&TIMING CHART       ATDV-Y
